Abatement Pro’s Cheat Sheet to Identifying Asbestos in Insulation

If you’re concerned about asbestos in insulation, here’s what you need to know right away:

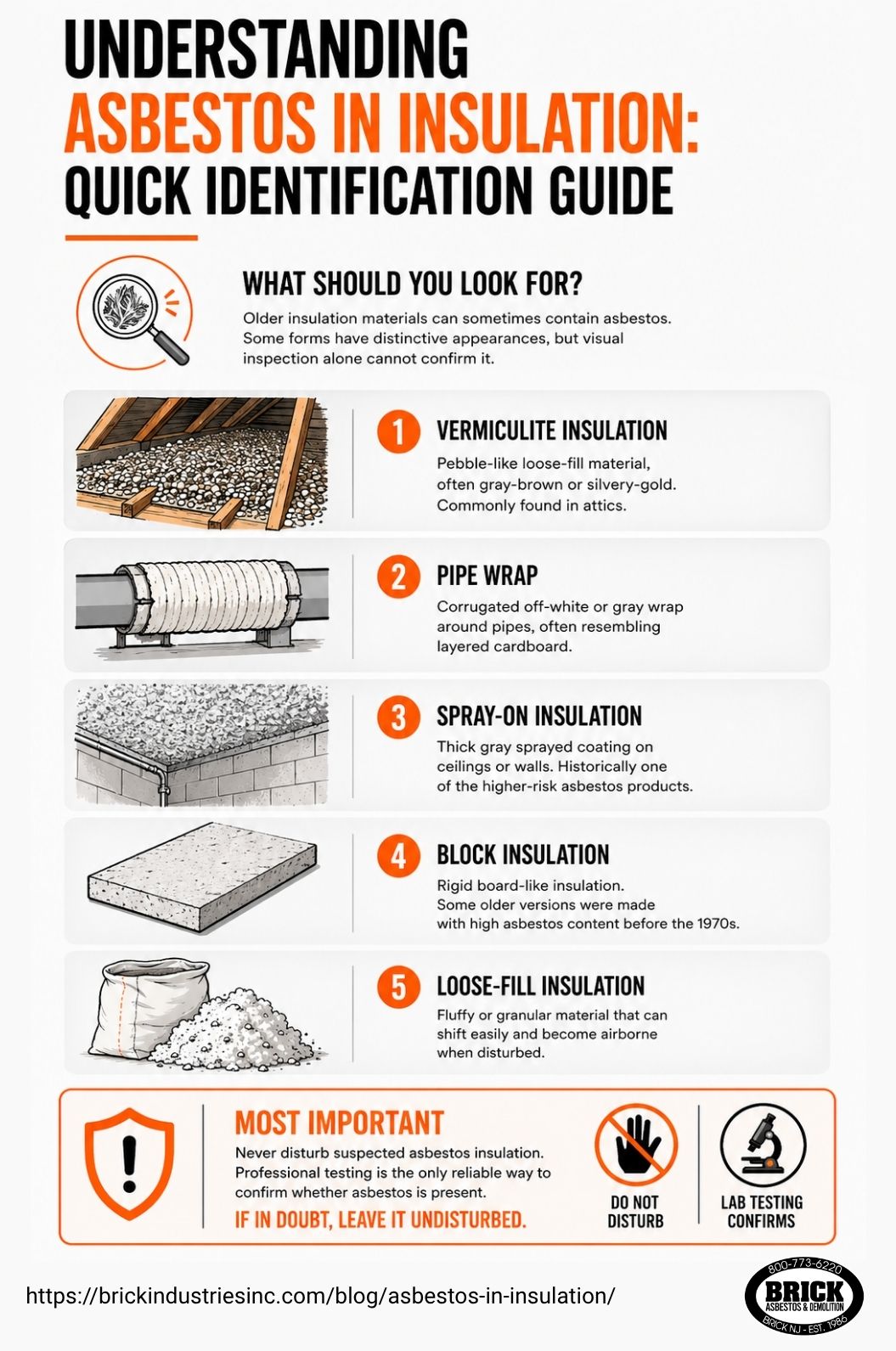

Quick Identification Guide:

• Vermiculite insulation – Pebble-like, grayish-brown or silvery-gold, often found in attics
• Pipe wrap – Corrugated, off-white or gray material that looks like cardboard
• Spray-on insulation – Thick, gray coating on ceilings or walls, historically one of the highest-asbestos products used
• Block insulation – Rigid, chalky white or gray blocks, often found on boilers, tanks, and heating equipment
• Loose-fill insulation – Fluffy, granular material that easily becomes airborne

Most Important: Never disturb suspected asbestos insulation. Professional testing is the only way to confirm its presence.

If your home was built between 1900 and the 1980s, your insulation might contain asbestos. This mineral was a popular insulator because it was fireproof, durable, and cheap, and the amount of asbestos varies widely from one product to the next. The safest move is to leave suspect material alone until a licensed inspector samples it.

Spotting asbestos insulation early helps homeowners plan a renovation without surprise delays. My family has run Brick Asbestos & Demolition as a New Jersey-licensed asbestos abatement contractor since 1986. We offer a Free On-Site Assessment for anyone who finds a suspect material.

What is Asbestos Insulation and Why Was It Used?

Asbestos insulation refers to any insulating material containing asbestos, a group of naturally occurring fibrous minerals. Its unique structure made it strong, durable, and highly resistant to heat and fire, making it an ideal material for thermal protection in buildings for nearly a century.

From the mid-1860s through the late 1970s, asbestos was widely used in insulation for homes and commercial buildings. Its heat resistance helped keep homes warm in winter and cool in summer while offering crucial fireproofing. This made it a cost-effective choice for builders. Homes built from 1900 to the 1980s may contain insulation made with asbestos. Insulation installed during those decades can still be in place today.

A significant portion of asbestos-contaminated vermiculite insulation in the U.S. came from a mine near Libby, Montana, active until 1990. According to the U.S. Environmental Protection Agency, Libby vermiculite made up the majority of vermiculite insulation in the United States, and the agency advises homeowners to assume any vermiculite insulation may contain asbestos.

Common Places to Find Asbestos in Your Home

Given its widespread use, asbestos in insulation can be found in numerous areas throughout older New Jersey homes. Recognizing these common locations is the first step in identifying potential hazards:

• Attics: This is perhaps the most well-known location for asbestos insulation, particularly loose-fill vermiculite insulation, which often looks like pebble-like, grayish-brown or silvery-gold granules.
• Wall Cavities: Loose-fill asbestos insulation was also blown or poured into wall spaces to improve thermal performance.
• Basements and Crawl Spaces: These areas often contain asbestos insulation wrapped around hot water pipes, boilers, and heating ducts.
• Around Pipes and Ducts: Asbestos was commonly used to insulate pipes, boilers, and heating and air conditioning ducts. This often appears as a corrugated, off-white or gray material, sometimes with a plaster-like coating.
• Boilers and Furnaces: Older boilers and furnaces themselves, or the pads beneath them, may contain asbestos materials for heat resistance.
• Around Electrical Boxes: Asbestos millboard or paper was sometimes used for electrical insulation.
• In Flooring and Ceiling Materials: While not strictly insulation, asbestos was also incorporated into floor tiles (especially vinyl or asphalt tiles), the mastic adhesives holding them down, and even “popcorn” or textured ceilings. If these materials are disturbed during renovations, they can release fibers.

Your Guide to Identifying Asbestos in Insulation

Identifying asbestos in insulation by sight can be challenging, since many modern insulation materials look similar. Color, texture, and location give you strong clues to start with, and a lab test confirms what the material is.

Common Types of Asbestos in Insulation

Various forms of asbestos insulation were used, each with a distinct appearance:

• Loose-Fill or Blown-In Insulation: This type was commonly poured or blown into attics and wall cavities. It often has a fluffy, granular, or pebble-like appearance.

• Vermiculite Insulation: A common type of loose-fill, this insulation looks like small, shiny, grayish-brown or silvery-gold pebbles. Much of the vermiculite in U.S. homes originated from the Libby, Montana mine, so the EPA recommends treating any vermiculite insulation as if it contains asbestos. The U.S. Environmental Protection Agency (EPA) provides extensive resources to protect your family from asbestos-contaminated vermiculite insulation.

• Block Insulation: These rigid, pre-formed blocks have a dense, chalky surface and were often wired or strapped onto boilers, hot water tanks, and heating equipment. Any block insulation on older heating equipment is worth testing.

• Asbestos Pipe Wrap Insulation: This was used to insulate pipes, ducts, and boilers. It often appears as a corrugated, paper-like material wrapped around pipes, or as a plaster-like coating that can be off-white or gray. When intact, it may have a smooth, hard surface, but if damaged, the fibrous nature can become apparent.

• Spray-On Insulation: Applied directly to ceilings, walls, and structural beams (especially in commercial buildings), this insulation creates a thick, gray, textured coating. Spray-on insulation was most common in commercial buildings and turns up less often in single-family homes.

Asbestos vs. Modern Insulation: Key Differences

Distinguishing asbestos in insulation from safer modern alternatives like fiberglass and cellulose is vital for homeowner safety. Here’s a comparison to help you understand the visual and textural differences:

Fiberglass Characteristics: Developed in the 1930s, fiberglass insulation is made from thin glass fibers. It comes in batts or as loose-fill and is usually pink, yellow, or white with a fluffy texture. While safer than asbestos, direct contact can cause skin and respiratory irritation, so protective gear is recommended.

Cellulose Characteristics: Cellulose insulation is made from recycled paper products. It’s typically gray, soft, and resembles finely ground newspaper with a dull finish. It is usually blown into attics and wall cavities.

Rock Wool Insulation: Also known as mineral wool, this insulation is made from spun molten rock or slag. It has a fibrous, wool-like texture similar to fiberglass and can be white, gray, or brownish. It is a common modern alternative that is unlikely to contain asbestos.

Health Effects of Asbestos Fibers

Asbestos becomes a health concern when fibers get into the air and are inhaled. Long-term exposure is linked to mesothelioma, lung cancer, and asbestosis, and these diseases can take many years to develop. The risk comes from disturbing the material, which is why I tell homeowners to leave suspect insulation alone until it has been tested. The Centers for Disease Control and Prevention explains these health effects in detail.

What to Do if You Suspect Asbestos

If you think you have found asbestos insulation in your New Jersey home, I recommend a few simple steps to keep fibers out of the air until a professional can take a look.

The First Steps: Safety and Professional Testing

1. Do Not Disturb It: Asbestos insulation that is intact and left alone is far less likely to release fibers. The risk arises when the material is disturbed, causing fibers to become airborne. Avoid touching, moving, or otherwise disrupting any suspected asbestos-containing material.
2. Avoid Scraping, Sanding, or Drilling: Any activity that could break up the insulation will release fibers. Do not attempt to clean, sweep, or vacuum suspected asbestos insulation with a regular household vacuum, as this will only spread the fibers.
3. Keep the Area Closed: If the suspected insulation is exposed or in an area that could be easily disturbed, keep the door to that space shut and keep children and pets out until the material has been tested.
4. Professional Inspection is Essential: A licensed asbestos inspector takes samples safely and sends them to an accredited lab for analysis. The results show which materials contain asbestos and guide your next steps. For vermiculite, plan the project as if the material contains asbestos while you wait. If your home is in Ocean County, you can learn more about asbestos testing in Ocean County and schedule a visit with my team.

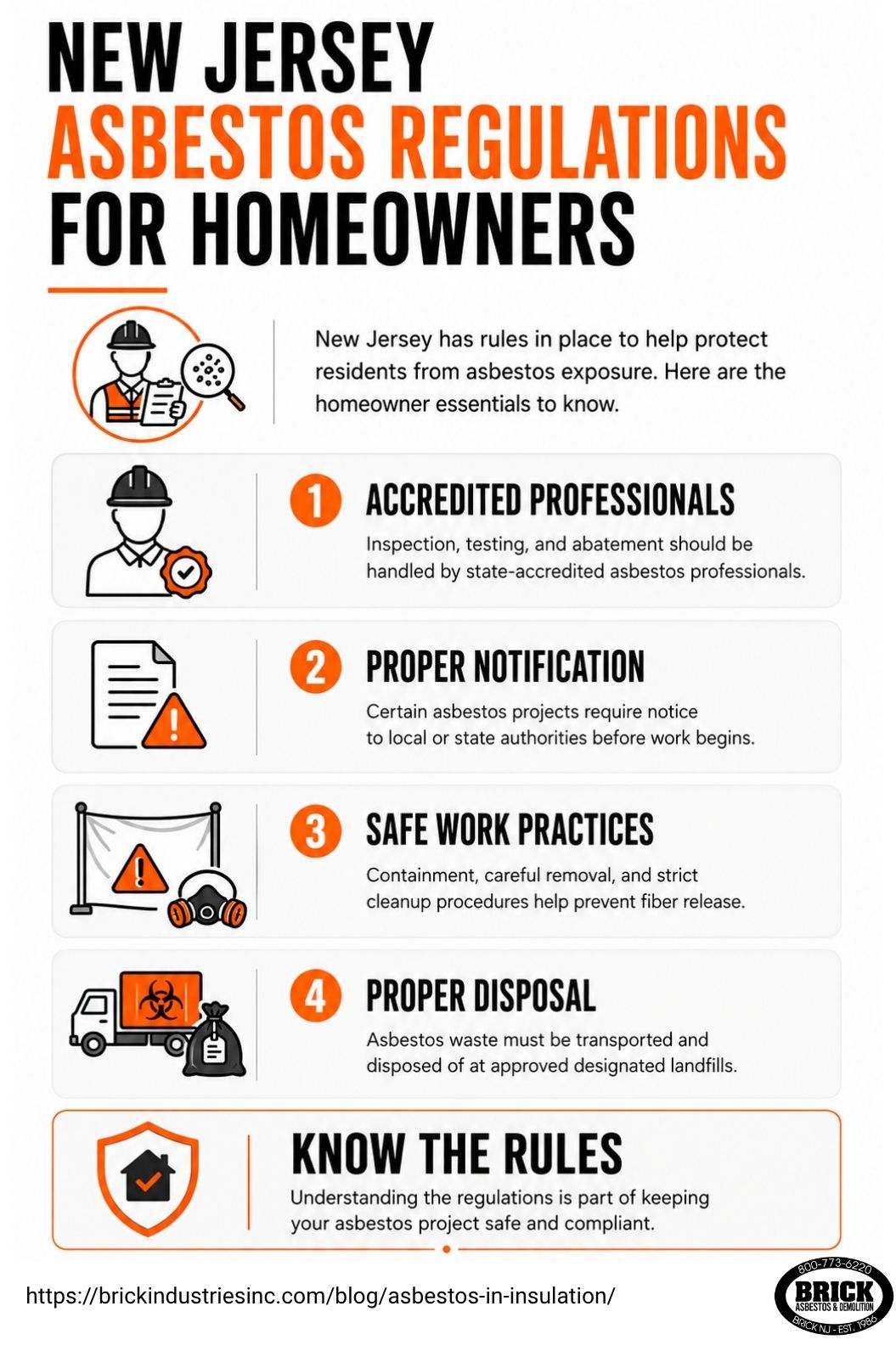

New Jersey Asbestos Regulations for Homeowners: In New Jersey, regulations are in place to protect residents from asbestos exposure. These regulations generally require:

• Licensed Contractors: Anyone other than the homeowner who removes asbestos from a home must hold a license from the New Jersey Department of Labor and Workforce Development (NJDLWD), and the New Jersey Department of Community Affairs (NJDCA) recommends licensed professionals for all removal work.
• Proper Notification: For certain projects, local and state authorities must be notified before abatement begins.
• Safe Work Practices: Strict procedures for containment, removal, and disposal are mandated to prevent fiber release.
• Proper Disposal: Asbestos waste must be transported and disposed of at designated landfills.

The Professional Abatement Process

Once asbestos in insulation has been confirmed in your New Jersey home, the safest and most effective solution is professional abatement. Attempting to remove asbestos yourself can significantly increase the risk of exposure for you and your family, and can lead to improper disposal.

At Brick Asbestos & Demolition, our asbestos removal process is built around containment, careful removal with specialized equipment, and disposal that meets New Jersey requirements.

Here’s a general overview of what our professional abatement process entails:

1. Thorough Assessment and Planning: We begin with a detailed inspection to determine the extent and type of asbestos-containing material. Based on this, my team develops an abatement plan built around your home and New Jersey requirements.
2. Containment: Before any work begins, the affected area is sealed off using plastic sheeting and negative air pressure systems. This creates a controlled environment, preventing asbestos fibers from escaping into other parts of your home during removal.
3. Safe Removal: Our trained technicians, equipped with specialized personal protective equipment (PPE) and tools, carefully remove the asbestos insulation. Techniques are employed to minimize fiber release, often involving wetting the material to prevent dust.
4. Specialized Equipment: We use industrial-grade HEPA-filtered vacuums and air filtration units to capture airborne fibers and maintain air quality within the containment area.
5. Proper Disposal: All removed asbestos waste is double-bagged, sealed, and labeled. It is then transported by licensed haulers to approved landfills designed to safely handle hazardous materials, strictly adhering to New Jersey’s waste disposal regulations.
6. Decontamination and Clearance Testing: After removal, the work area undergoes a thorough cleaning and decontamination process. Independent third-party air sampling (clearance testing) then confirms the air quality meets regulatory standards and the area is safe for re-occupancy.

Key Takeaways for Asbestos in Insulation

1. Many insulation types look alike, so a lab test confirms whether insulation contains asbestos.
2. The EPA advises treating vermiculite as if it contains asbestos.
3. Intact insulation that stays undisturbed is the lowest-risk situation while you wait for results.
4. In New Jersey, anyone other than the homeowner who removes asbestos must be licensed.
5. Professional abatement uses sealed containment and HEPA-filtered negative air to keep dust out of living spaces.
